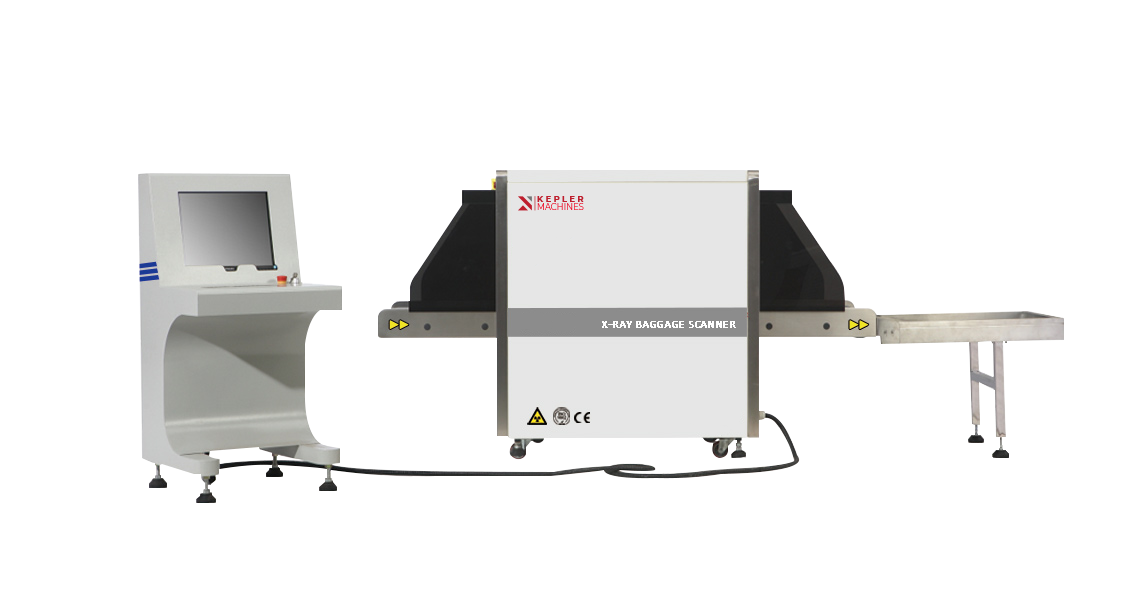

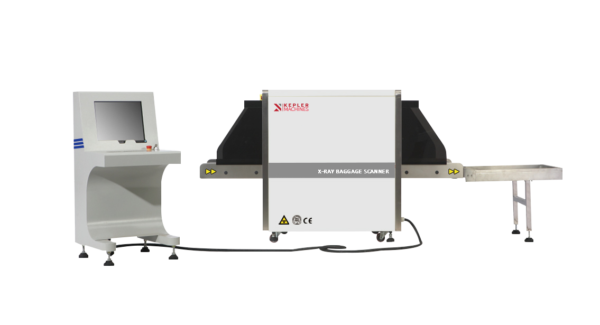

The Kepler Machines X-Ray Inspection System are simple, elegant and thoughtfully designed to provide outstanding threat protection. KS-XS-6550 is an advanced Multi-energy baggage scanner with a tunnel opening of 650 (W) X 500 (H) and it offers a compact design with increased dimensions for a wider range of placement. The KS-XS-6550 has been designed to meet the the needs of airport,parcel service, transportation hubs and custom facilities .
The scanners offered by Kepler machines are composed utilizing most recent innovation, which assists with reducing the shots of mishappenings.The ystems are equipped with Real-Time Diagnostics, which allows users to monitor system health and thus greatley increasing system lifespan. While the detection performance is far superior to that of other automatic systems, the rate of false alarms has been considerably reduced through the use of optimized algorithms.
Tunnel Size:650 (W) X 500 (H) mm
Conveyor Speed:.22 m/s
Conveyor Max Load:170 Kg
X-Ray Sensor:L-shaped array detector, 24 bit
Single Inspection Dosage:< 1.2 μGy
Leakage Radiation:< .1 μGy/ h
Wire Resolution:40 AWG
Steel Penetration:40 MM
System Power:220 V AC, 50 Hz
